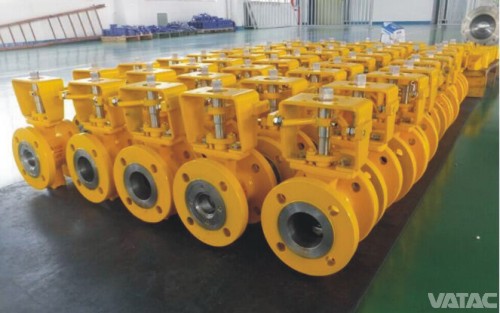

Vatac Carbon Steel Flanged Top Mounting Segment Ball Valve

Vatac Carbon Steel Flanged Top Mounting Segment Ball Valve are quarter-turn control ball valves for accurate throttling control of fibrous suspension applications plus clean, dirty viscous, and corrosives liquids and gases.
It is designed to meet the highest industry standards for dynamic performance.
Flanged or flangeless designs meet ANSI or ISO face-to-face dimensions.
Segemented Ball Valve design features include blow-out proof shaft protection, high flow capacity, splined ball-to-shaft connection for ease of maintenance and zero backlash.
Seat options include flexible metal, rigid metal and PTFE seats.




Vatac Carbon Steel Flanged Top Mounting Segment Ball Valve:

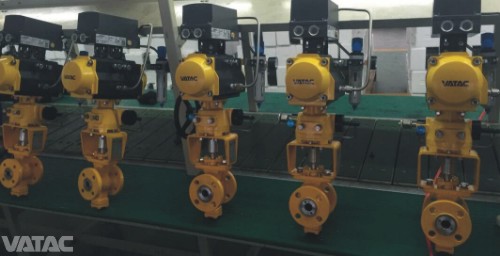

Direct Mounting with Pneumatic or Electric Actuators.
- We can supply bare shaft valves with Torque, Safety Factor and ISO mounting information to our customers.


Pressure Class: ANSI #150, #300, PN10 to PN64
- Detailed pressure to be provided by customers.


Cast Carbon Steel or Stainless Steel Body, Stainless Steel Trim in Gr. 304 or 316.
- Body: A216 WCB/WCC, A352 LCB/LCC, A217 WC1WC6/WC9, A217 C5, A351 CF8/A351 CF8M…etc.
- Trim: SS304/SS316, Duplex Steel…etc.


Size Ranges: DN15 through DN300


Body Styles: Flanged Ends



STANDARDS COMPLIANCE:
- ASME B16.34, DIN 3202, API 6D
- ASME B16.10, MSS SP-71, BS EN558
- ASME B16.1 CLASS 125, ASME B16.5 CL150, EN1092, EN12226
- ISO 5208, API 598


Please contact with us if you are interested in Vatac Carbon Steel Flanged Top Mounting Segment Ball Valve.



Email: valve@cnvchina.com
